Description
- Material: Brass
- Length: 13cm , Fit for size 10x13cm hot foil stamping machine;
- Suitable for Hot Stamping Machine and so on.
- If you need bigger size or smaller, please inquiry the sales.
- We also Provide Letters Mold, Foils and Hot Stamping Machine for your option.
Descriptions

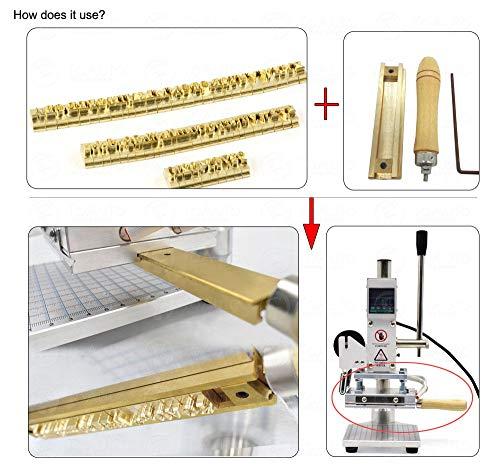

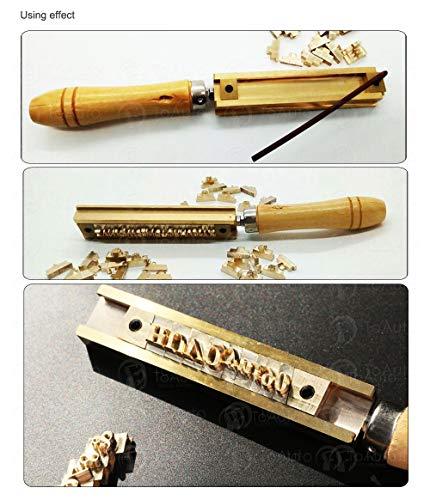

The T-slot is used to hold brass type letters, for hot stamping use and so on.
We also provide letters mold, foils and hot stamping machine for your option.
Parameters
Material: Brass
Craft: CNC engraving
Length(L): 8cm, 9cm, 10cm, 13cm (optional)
Total height:9.6mm
Embedded height:1.75mm
Total width (Top width ):24.3mm
Body width: 19.6mm
Internal embedded width:14.8mm
Internal body width:12.3mm
Install hole diameter: 4mm
Diameter of bolt and screw: 4mm
End fixed block length: 1cm*2PC
Note:
The 8cm T-slot can hold about 9 pieces capital letters of 6mm height Times New Roman font; or about 7 pieces capital letters of 8mm height Times New Roman font (13 PCS Lowercase letters ). For different font, the No. can be held is different.
The 9cm T-slot can hold about 12 pieces capital letters of 6mm height Times New Roman font; or about 10 pieces capital letters of 8mm height Times New Roman font (17 PCS Lowercase letters ). For different font, the No. can be held is different.
The 13cm T-slot can hold about 20 pieces capital letters of 6mm height Times New Roman font; or about 17 pieces capital letters of 8mm height Times New Roman font(28 PCS Lowercase letters ). For different font, the No. can be held is different.
Packing list
1PC Brass T type slot with wood handle
1Pairs Bolt and screw
1PS Allen spanner
