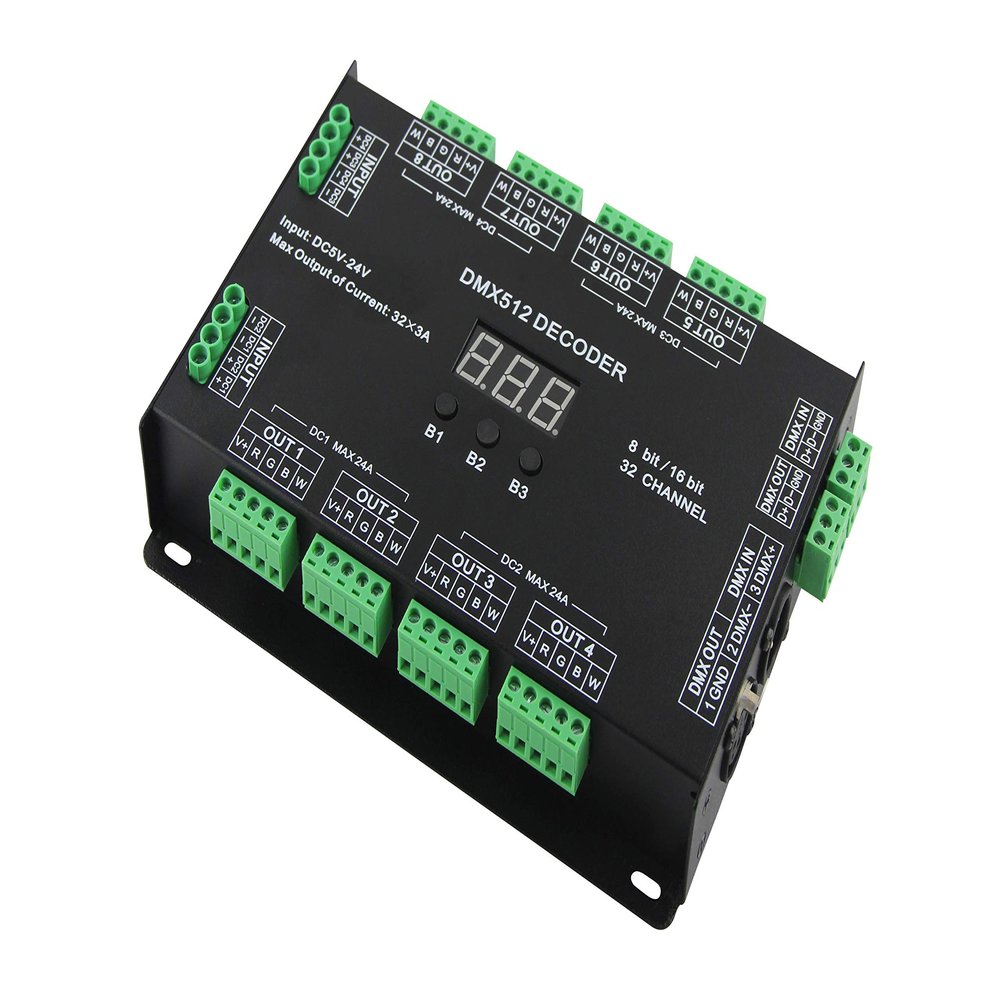

32 Channel 96A RGBW DMX 512 LED Decoder Controller DMX Dimmer DC5-24V RGBW RGB LED Light 8 Bit/16 Bit

Description

• Automatically adapts to input voltages between DC5-24V. Power loss memory. Incorrect wiring protection at DMX port.
• Input standard DMX512 signal; 3-digit display shows DMX address.Incorrect wiring protection at DMX port.
• 32 channel outputs; linear dimming, flicker-free outputs.
• DMX512 signal presence indicator.14 color changing modes and 10 speeds in test mode.

Description
The 32CH RGBW DMX512 decoder converts a DMX512/1990 digital signal into PWM (Pulse Width Modulated) signals, controlled by a DMX512 console, DMX512 signal 8 bit, 16 bit optional. Featuring unique firmware, the decoder produces smooth and perfect fades.
Specifications:
Model: 32CH DMX512 Decoder

Input voltage: DC 5-24V

Max load current: 3A32CH Max 96A

Max Output Power: 480W (5V) / 1152W (12V) / 2304W (24V)

Grey Scale: 8 bit or 16 bit levels

Input Signal: DMX512/1990

Output Signal: Constant Voltage PWM32

Decoder Channel: 32CH RGBW

DMX512 socket: 3-pin XLR / terminal block

Dimension: 18714535mm

Weight (G.W): 757g

Features:
1. Automatically adapts to input voltages between DC5 - 24V.

2. Input standard DMX512 signal; 3-digit display shows DMX address.

3. 32 channel outputs; linear dimming; flicker-free outputs.

4. 14 color changing modes and 10 speeds in test mode.

5. DMX512 signal presence indicator.

6. Power loss memory.

7. Incorrect wiring protection at DMX port.

8. The decoder can operate in DIM / CT / RGB / RGBW control modes.
