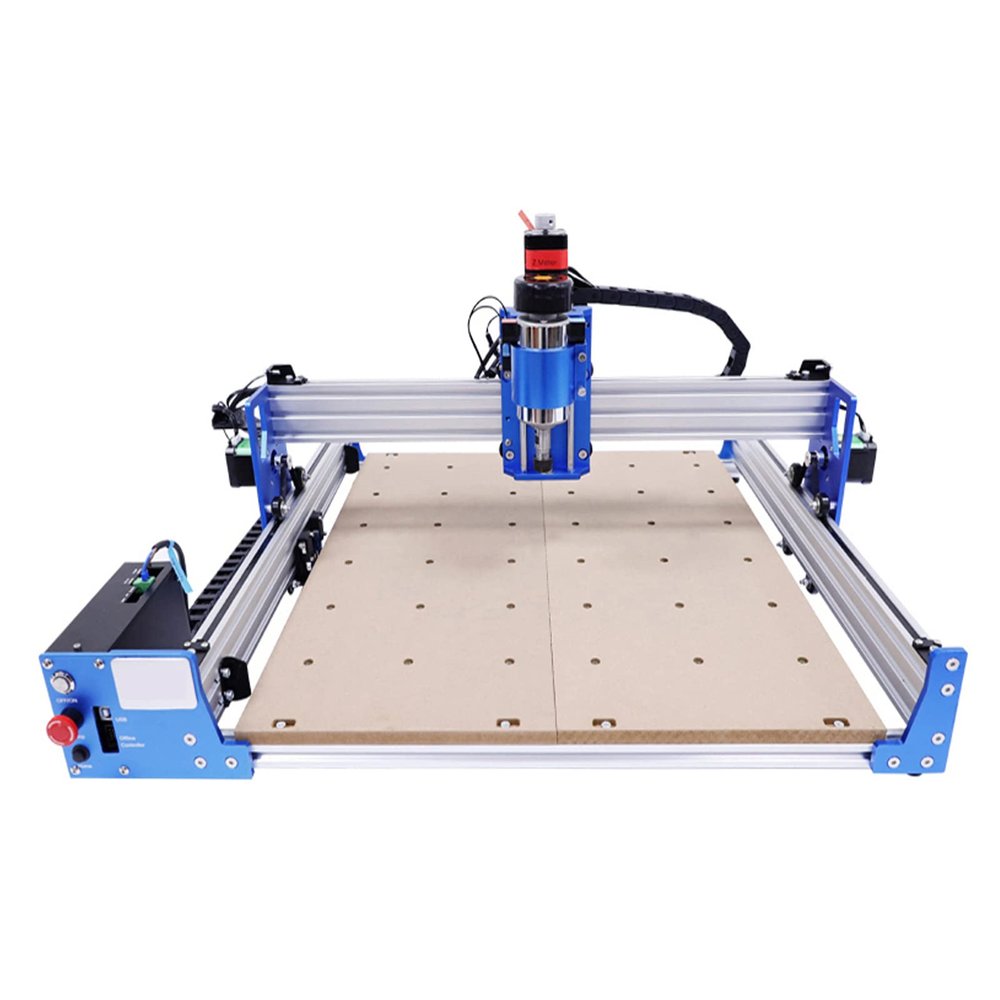

4040 CNC Router Machine, 23.62 * 20.47inch Aluminum Frame CNC Engraver Cutter, 3 Axis Aluminum Frame Engraving Machine for Industrial Technology Advertising Design

Description

• 4040 CNC Router MachineThe engraving machine with the industrial-grade chip and 75W high-power spindle motor takes a very short time to complete the engraving, which is more highly efficient.
• Premium MaterialThe engraving machine with an aluminum frame and wood panel workbench is corrosion-resistant and strong, having a long service life.
• Wide ApplicationWith an effective engraving area of 400*400*83mm, the machine can easily accommodate most projects.
• Good Control PerformanceThe 42 two-phase stepper motor has good control performance. The starting, stopping, and flipping are done within a few pulses. Also, the machine is equipped with limits in several directions to prevent accidental touching of the edges and to reduce damage to the machine.
• High AccuracyThe engraving machines with industrial-grade chips have precise calculations and can achieve precise engraving of 0.05mm/0.001inch.

Description
Accurate engraving is not possible without an engraving machine. The aluminum frame engraving machine is more durable, stronger, and has a long service life. The engraving machine with the industrial-grade chip and 75W high-power spindle motor takes a very short time to complete the engraving, which is more highly efficient.

Details
Straight Square Rails: The straight square rails allow the bearings to work for long periods without affecting performance.
Emergency Stop Button: You can press the emergency stop button to protect the machine when it is affected or when it is working erratically.

Application
It is suitable for industrial technology, advertising design, art, educational programs, amateurs, architectural models, printed circuit boards, etc. It is suitable for engraving plastic and wood.

Specification
Color: Blue, Silver
Material: Aluminum, Wood
Maximum Workpiece Thickness: 78mm/3.07inch
Effective Stroke: 400*400*83mm/15.75*15.75*3.27inch
Drive Power: 12V 5A
Spindle Power: 75W
Voltage: 110V
Power: 100W
Spindle Speed: 0-10000rpm
Spindle Accuracy: Radial Runout 0.05mm
Stepper Motor: 42 Two-phase Stepper Motor
Rotation Speed: 6000rpm
Acceptable Software: GRBL/Candle
Communication Interface: USB
Gross Weight: 12kg/26.46lbs
Engraving Speed: 50-1500mm / min (Depending on the Material Speed Setting)
Standard Spindle: 42mm High-Speed Spindle / ER11 Chuck / 3.175mm Clamping Centre
Workbench Size: 60*52cm/23.62*20.47inch
Product Size: 74.5*61.5*39cm/29.33*24.21*15.35inch
Package Size: 67*39*29cm/26.38*15.35*11.42inch

Package Included
1 Set* Carving Bit
1* Z Probe
1* Right-Y-axis
1* U Disk
1* USB
1* Power Supply
1*Power Cable
4* Clamps
1*Manual
Other Accessories for Installation

Notes
1.Please read the manual completely before installation and use. And pay particular attention to the safety instructions included.
2.It can't be used to carve hard metals, jade, or other hard objects.
3.Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
2.It can't be used to carve hard metals, jade, or other hard objects.
3.Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
