600W Sewing Machine Servo Motor, Universal Brushless Electric Servo Motor, Split Motor and Controller for Industrial Sewing

Description

• Cost-effective: this pure copper motor is made of high quality copper wire (99.5% purity), corrosion-resistant, with good thermal and electrical conductivity, which makes it work more stably and saves about 75% of electricity than the clutch motor.
• Outstanding performance: equipped with independent stepless speed lever (500-4500rpm), sewing speed up to 100 stitches/minute. Compared to other motors, this pure copper brushless motor responds faster to changing workloads and speed requirements and works 30% more efficiently, making it the ideal choice for you.
• Safety and Protection: With magnet steel sleeve, it can fix the magnet from falling off, and can withstand high speed rotation and high load, reducing the probability of motor failure. In addition, it has added belt cover to prevent accidental injury caused by contacting the wheels during operation.
• Sturdy design: The needle bearing of the control arm reduces the wear of the shaft and sleeve so that it does not create a gap during long-term use. It has a shock absorber that reduces motor vibration, minimizes wear and prolongs the life of itself and the frame.
• Humanized design: it can work continuously for more than 72 hours. In addition, it has a speed limit controller that can be connected to LED lights (not included) with five brightness adjustable options, making it adaptable to different working requirements. The front cover of the motor and the motor body are cast in one piece with high concentricity, resulting in less running sound. Thanks to the pure copper motor, the noise level is low, allowing you to enjoy a quieter experience while working.

Features
Flexible Adjustment: The motor is equipped with an independent speed control lever. The position of the spring on it is adjustable for adjusting different elasticity, which increases pedal sensitivity and gives you more flexibility in speed adjustment.
Safe&Easy Operation: It comes with a controller, screen, heat dissipation fan and English user manual, making it very easy to understand and start to operate.
Wide Compatability: It comes with a speed adjustment range of 500-4500rpm, an adjustment step of 100 stitches/minute, and adjustable directions in both clockwise and anti-clockwise, enabling the motor to adapt to different working requirements. The controller can be connected to an LED light(not included) and boasts five brightness adjustable options, making it suit for different working environments.
Two-way Fixing: It is fixed with four screws in two directions to make it more stable for better supporting the motor.

Details
Magnet Sleeve: It can fix the magnet without falling off, and can withstand high-speed rotation, high load, and reducing the probability of motor failure.
Needle Roller Bearing: It can reduce the wear of the shaft and sleeve so that it does not produce clearance for long-term use.
Shock Absorbing Pads: They can reduce motor vibration, reduce noise, reduce wear, and extend the lifespan of the motor and frame.

Specifications
Color: Silver, White
Material: Copper, Aluminum, Plastic, Magnet Steel
Assembly Required: Yes
Plug Type: US Standard
Voltage: 110V
Speed: 500-4500RPM
Step Adjustment: 100 Stitches/Min
Power: 600W
Controller Power Cord Length: 1.81m/5.94ft
Servo Motor Size: 25.5*13.5*15cm/10*5.3*5.9in
Controller Size: 18.7*6*15.9cm/7.4*2.4*6.3in
Packaging Size: 31.5*28*21cm/12.4*11*8.3in
Net Weight: 3.95kg/8.7lbs
Gross Weight: 4.35kg/9.6lbs

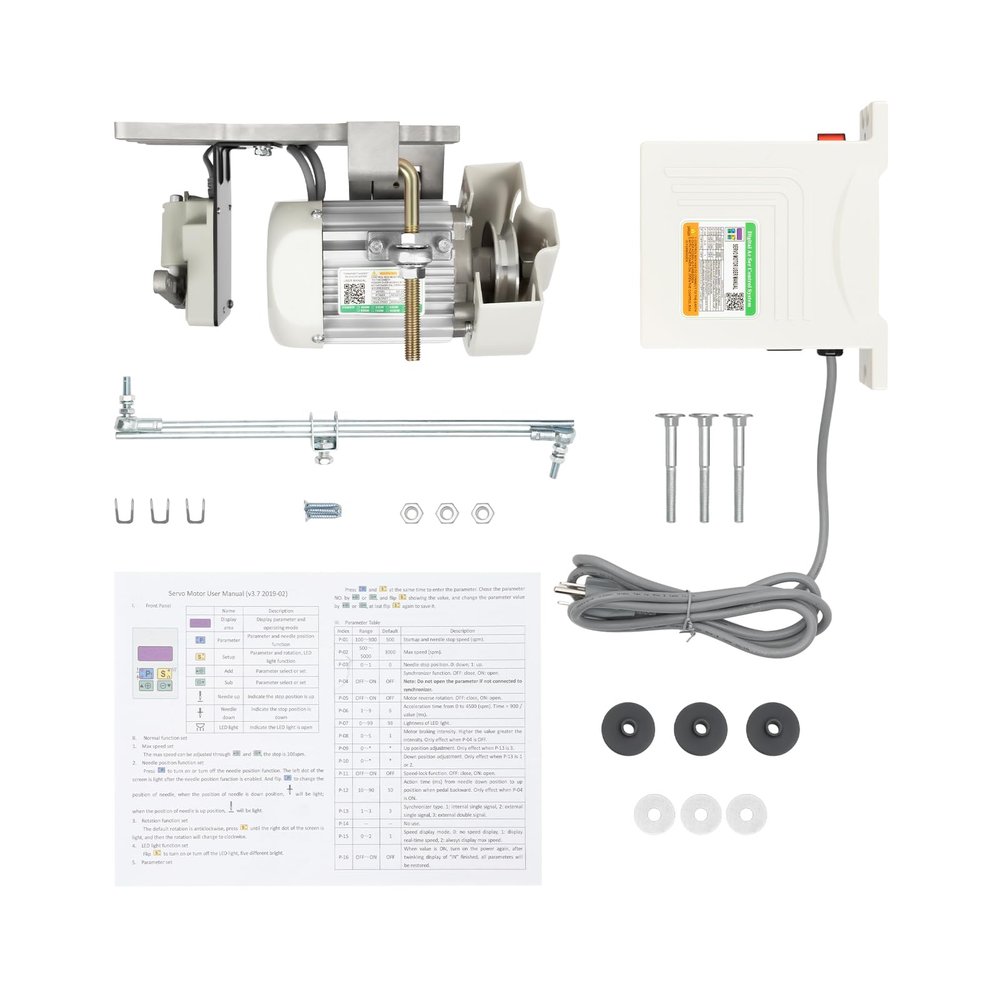

Package Included
1* Brushless Motor
1* Controller
1* English Manual
All Accessories for Assembly
