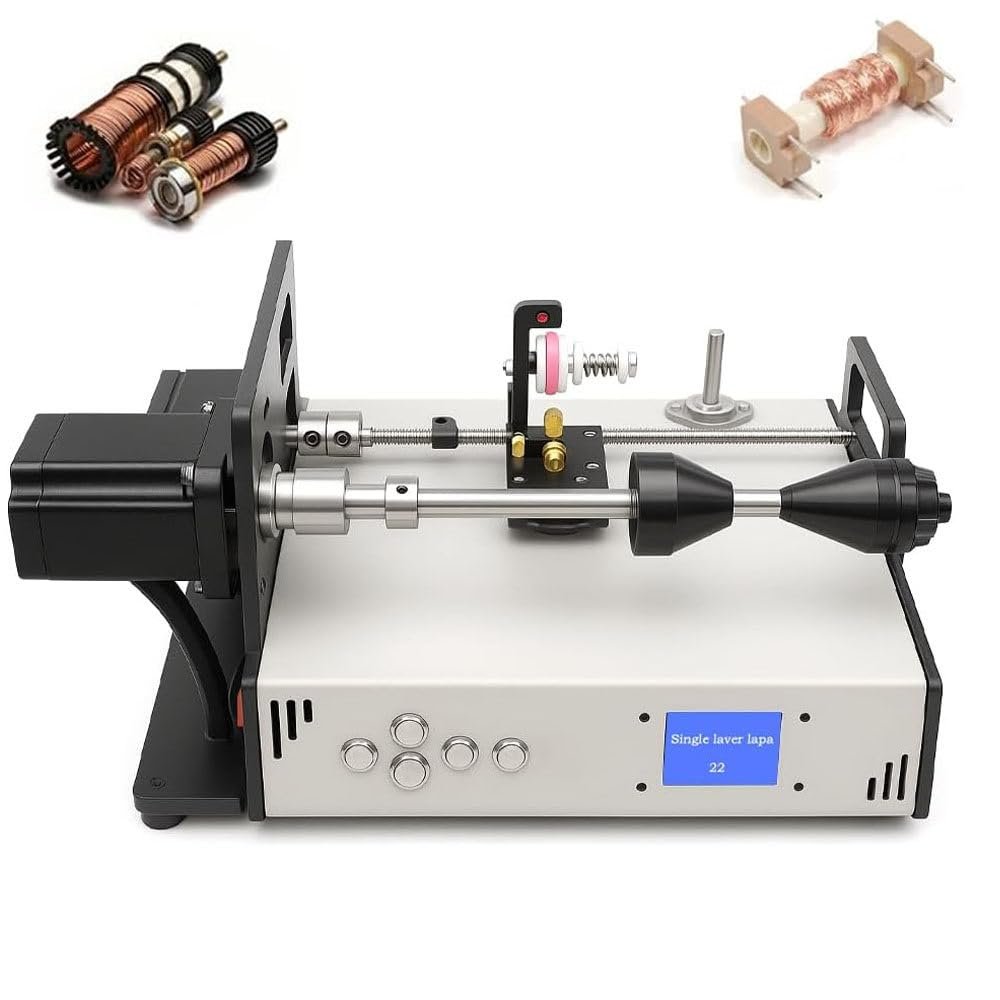

Coil Winding Machine,Industrial Automatic Winding Wire Machine,Winding Pitch Accuracy Reaches up to 0.01mm,Precisely Adjusts Wire Width,Speed,Number of Turns (10cm)

Description

• Precision Winding: Automatic winding machine features automatic wire routing and a 4mm-thick steel base. It offers a winding pitch accuracy of 0.01mm and a wire diameter range of 0.02mm-1.0mm. This ensures consistent winding of coils, ribbons, wires, and fishing lines, preventing problems like loose coils and fraying
• Specifications: Cable Wiring Coil Winder Machine Utilizing 900RPM/1200RPM winding technology, the 900RPM winding speed supports a spool diameter of 10cm and a wire width of 10cm on both sides. 1200 RPM supports spools up to 20 cm in diameter and a 20 cm left and right wire width, improving winding efficiency by 45%
• Adjustable Speed: Automatic Cable Tie Winding Machine By inputting parameters, the program intelligently adjusts wire width, speed, total number of turns, number of turns per layer, length, direction, and more (coarse and fine adjustments are possible), easily meeting complex coiling process requirements and ensuring tight and neat wire arrangement
• Intelligent Control: English user interface is simple and intuitive, with adjustable winding direction, pauseable at any time during winding, and automatic saving of winding parameters. Winding is neat and precise, and the number of turns can be set as needed, meeting the needs of large-scale production
• Wide Compatibility: Automatic winding machine is suitable for metal wire, fishing line, silk line, enameled wire, nylon wire, solder wire, resistance wire, optical fiber, 3D printing consumables, fishing line, and is suitable for a variety of industries, including electronics, textiles, and fisheries

Automatic winding machines, digital winding machines with memory function, fishing rod winding machines with LCD display, industrial winding machines

Features:
Records winding parameters and production data

Capable of winding coils, tape, silk thread, fishing line, etc.

Winding accuracy is controlled within 0.01mm, exceeding the 5% error of manual winding.

Slide rail accuracy is 0.01mm, and the winding wire diameter ranges from 0.02mm to 1.0mm.

Equipped with wire break detection, tension compensation, and automatic wire change functions, it supports 24-hour continuous production.

Winding speeds can reach 900-1800 rpm, and a single machine can produce thousands of coils per day.

Automatic winding is achieved by setting the number of turns required, then specifying the number of turns per layer and the length per layer.

Suitable for coil products such as the electronics industry (inductors, sensors, etc.) and motors and relays.

Specifications:
Name: Automatic Winding Machine / Automatic Wire Arrangement / Automatic Winding Machine
Motor Torque: 2.3Nm/3.3Nm
Speed ??Adjustment: Yes
Forward/Reverse: Yes
Spool Diameter Supported: 10cm/20cm
Winding Width Left/Right: 10cm/20cm 20cm
Slide Accuracy: 0.01mm (Closed-Loop Motor Wiring)
Winding Diameter: 0.02-1.0mm
Speed: 2-15 rpm, 120-900 rpm

Package Includes:
1 x Automatic Winding Machine
