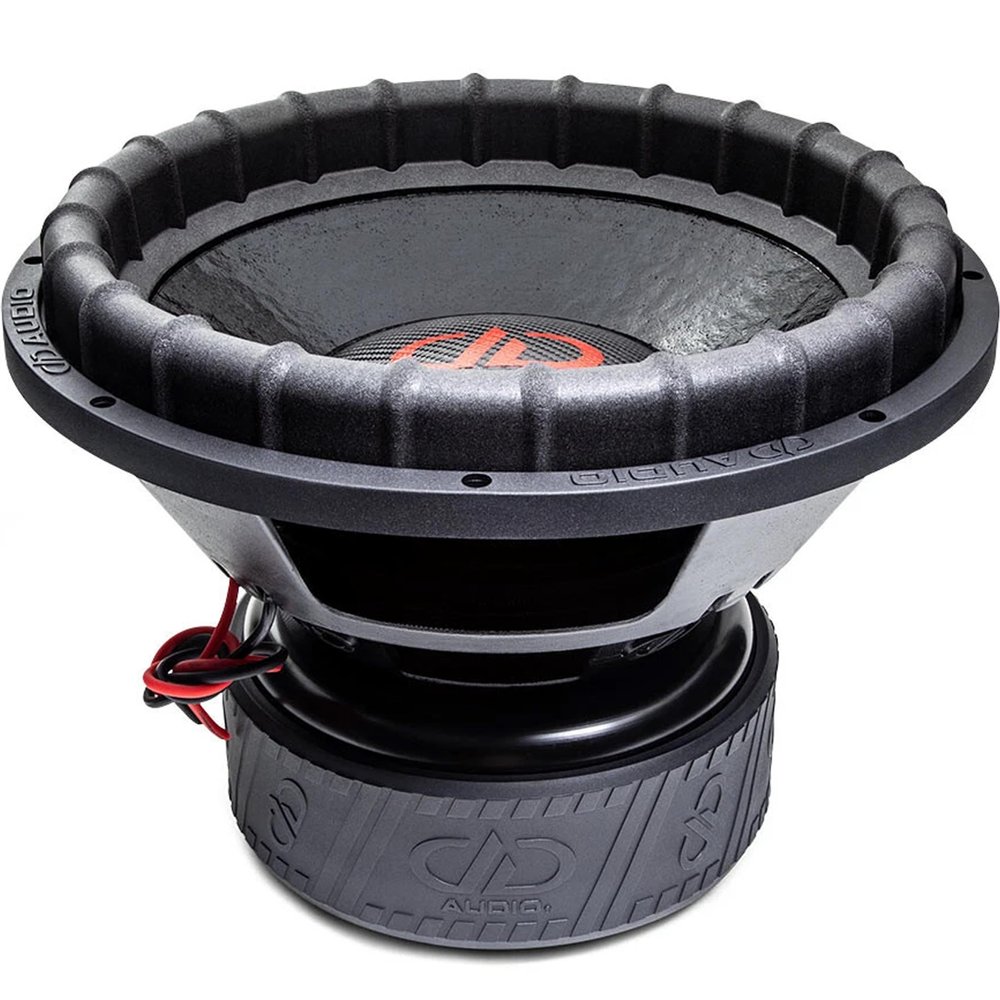

DD Audio 9915C-D1 15" USA Made 9600W Dual 1-Ohm Subwoofer

Description

• The 9900C combines the performance redefining technologies such as the aluminum Dual Stage rear mounted Heatsink, USA Made Iron Cloth Spider System, 2nd generation V-ROM surround, and more with the immense power of DDs largest ferrite motor subwoofer series, optimized for a 3200 watt rms and the ability to handle power bursts well over 12,000 watts.
• When supercharged, the 9900 motor throws nearly 9000 gauss through a 30mm deep gap, where the 8 layer coil is driven to 40mm of one way travel, with 15mm of coil still driven in the magnet gap resulting in exceptional coil control and excursion driven through the stiffest and lightest moving parts. The Free Flow Cooling System and multi-point heatsinks offer unbeatable heat dissipation to protect the high-temp insulated voice coil. The non-pressed carbon fiber loaded pulp cones are made to be incredibly light and strong, with the audibly distinguishable quality of being handmade in the USA.

NEW Aluminum 2 Stage Motor Heatsink 260mm Magnet Diameter Multi-Vent Free Flow Cooling Motor Shorting Ring Motor 4.3 High-Temp Voice Coil Excursion Optimized ESP Frame V-ROM Vario-Density Surround Non-Pressed Composite Reinforced Pulp Cone 11 Dual/Triple Layer Iron Cloth Spider 11 Dual/Triple Layer Iron Cloth Spider Laminated Tinsel Leads Hand Laid Composite Dust Cap Embossed DDesign Magnet Boot Made In USA Optional Upgrade: SuperCharge Speaker Size (In): 15 Watts RMS: 3200 Watts Peak: 9600 Impedance: D1 / D2 VCD (In): 4 Piston Diameter (In): 14.25 Fs (Hz): 34.32 Qms: 6.551 Qes: 0.426 Qts: 0.400 Vas (Liters): 54.38 Xmech (MM): 62 Xmax (MM): 32 Frame OD (In): 16.62 Frame OD w/Gasket (In): 16.75 Mounting Diameter (In): 15.19 Mounting Depth (In): 10.31 Motor Diameter (In): 10.31 Motor Depth (In): 4.56 Woofer Displacement (CuFt): 0.4 Ported Enclosure (CuFt): 3.0 - 6.0
