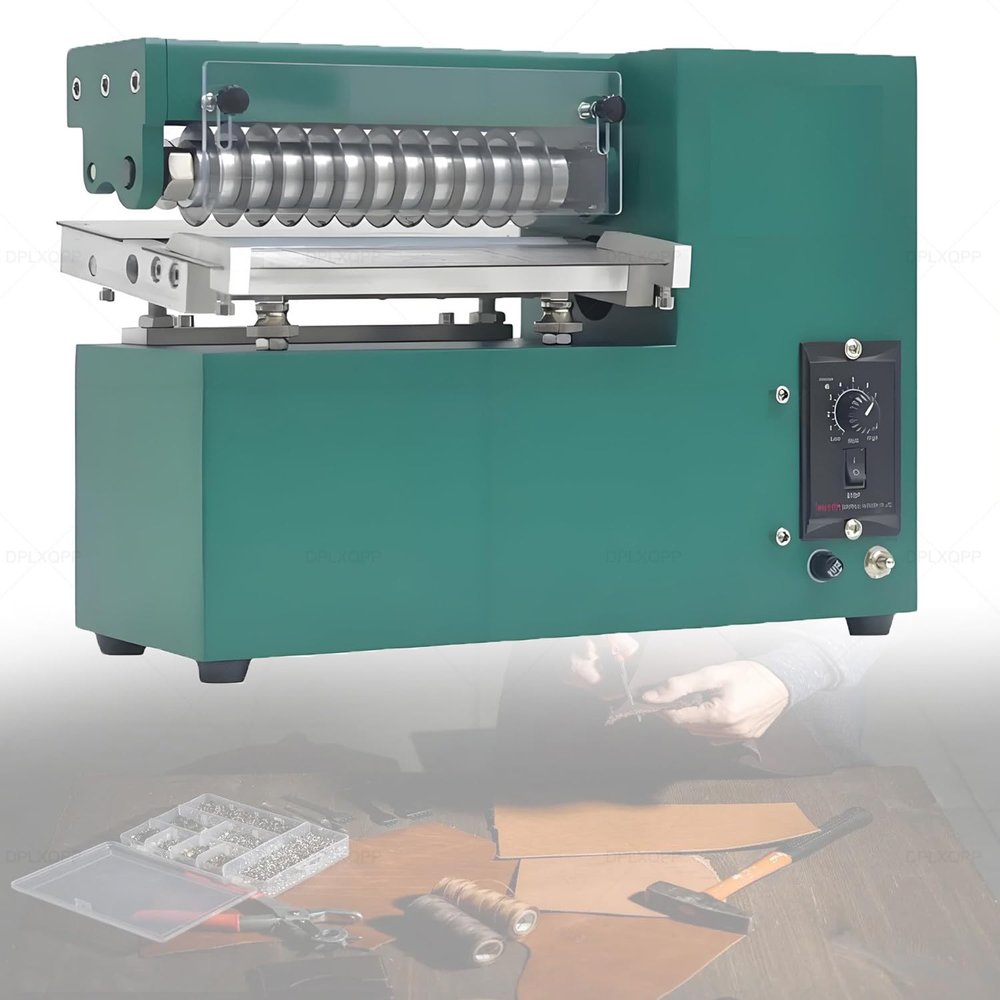

DPLXQPP Leather Cutting Machine,for Non-Woven,Kraft Paper,Adjustable Width 2-200mm,Cutting Thickness 1-5mm,1600 RPM Motor,with Shim Kits & Safety Baffle 90W

Description

• Small Leather Slitting Machine: Power: 90W/120W/180W; Cutting Shaft Length: 20cm (7.9 inches); Speed Ratio: 1:10; Motor Speed: 1600 rpm; Slitting Width: 2-200mm (0.08-7.87 inches); Cutting Length: Unlimited; Blade Specifications: 50x16x1mm
• High-Efficiency Cutting: Powerful leather slitting machine offers three power options (90W/120W/180W) and is equipped with sharp blades, helping you cut materials quickly and saving time and labor.
• Adjustable Cutting Width: Multi-functional slitting machine's cutting width is adjustable from 0.2-20cm (equipped with 1/2/5/10mm shims for width adjustment), and the cutting length is unlimited.
• Stepless Speed Regulation: Straight strip slitting machine features stepless speed regulation, allowing you to adjust it according to your work pace; a transparent baffle protects your hands, prevents splashing, and provides a clear view.
• Precautions for use: Lubricating oil should be added to the lubrication hole regularly to prevent wear or scratching of the rotating shaft due to normal lubrication. Please pay attention to safety when using the cutting and slitting machine. Do not place your hands on the blades while the machine is rotating, as this may easily cause cuts.

Still troubled by the low efficiency and inaccuracy of manual cutting?

Do you need a machine that can handle cutting needs for various widths and materials?

The cutting width is flexibly adjustable from 0.2 cm to 20 cm, and equipped with standard shims, precise slitting is effortless.

This small leather slitting machine, kraft paper cutting machine, foam slitting machine, multi-functional slitting machine, straight strip cutting machine, single-head slitting machine, and bag material cutting machine can easily meet your diverse creative and production needs, whether you're making shoelaces, bag accessories, or paper products.

Installation Instructions:
1. Calculate the required shim thickness, then install the blade and shim.
2. Tighten the fixing screws.
3. Adjust the feed screw upwards to align the blade with the nylon wheel.
4. Measure and adjust the positioning block as needed.
5. Install the gear between each pair of blades.
6. Connect the power supply, turn on the switch, and test with materials to ensure the machine is operating normally.

Product Specifications:
Name: Leather Cutting Machine
Power: 90W/120W/180W
Cut Shaft Length: 20 cm (7.9 inches)
Speed Ratio: 1:10
Motor Speed: 1600 rpm
Slitting Width: 2-200 mm (0.08-7.87 inches)
Cutting thickness: 1-5mm (0.04-0.2 inches)
Cut Length: Unlimited
Blade Specifications: 50x16x1 mm (1.97x0.63x0.04 inches)
Machine Dimensions: 40x17x29 cm (15.7x6.7x11.4 inches)
Net Weight: 18 kg (39.7 lbs)

Customer service:
If you have any questions about our products, please feel to contact us and we will reply to you within 24 hours.
