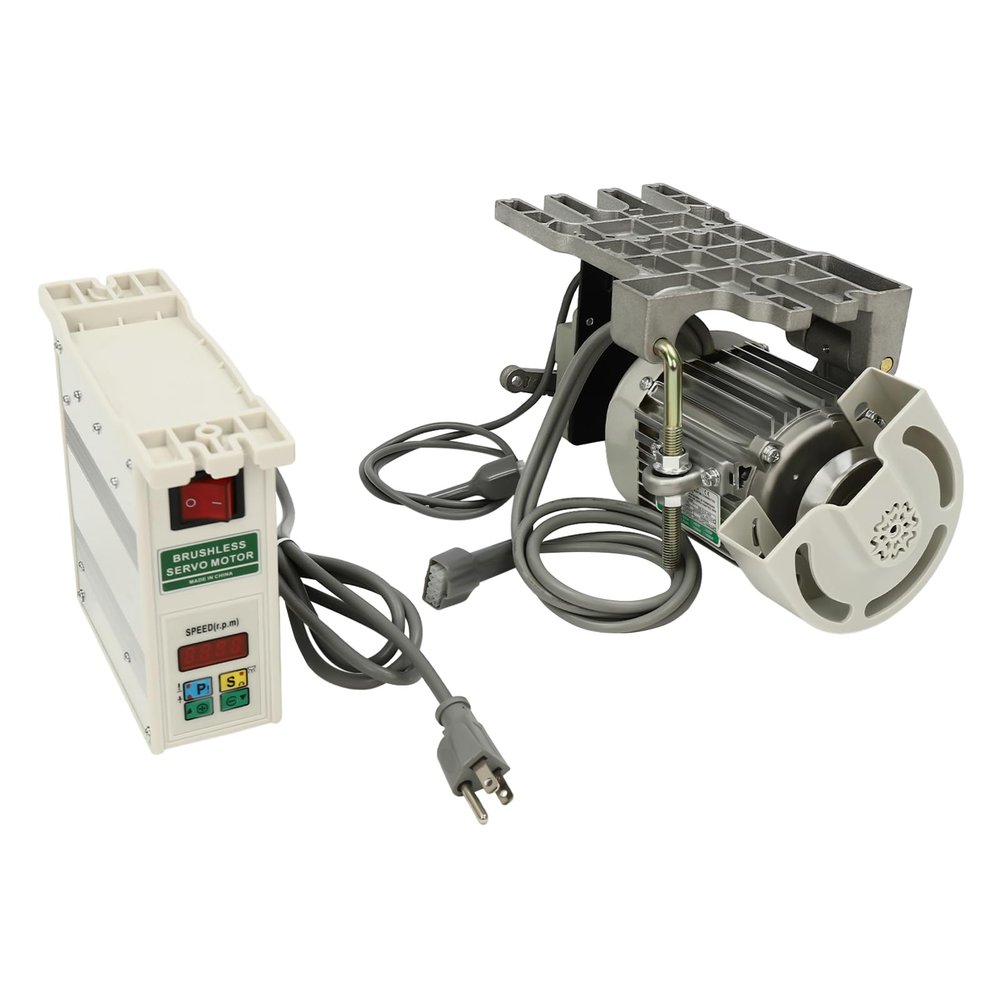

Electric Brushless Servo Motor with Controller 600W Industrial Sewing Machine Servo Motor 4500RPM Brushless Sewing Machine Servo Motor Split Motor, 100 Stitches/min

Description

• PREMIUM MATERIALSThe pure copper motor uses high-quality copper wire (99.5% purity), good at thermal conductance and conductivity, making its work more stable and saving about 75% of electricity compared to clutch motors. The motor base is reinforced and thickened, and there are some screws used to fix the motor on both sides, making it less prone to breakage.
• HIGH WORK EFFICIENCEThis 600w brushless servo motor is equipped with an independent stepless speed lever (500-4500rpm) with a fast sewing speed of 100 stitches/min. Compared to other motors, this pure copper brushless motor can respond faster to changing workloads and speed requirements, with a 30% increase in work efficiency, making it your ideal choice.
• MAGNET STEEL SLEEVEIt is paired with a magnet steel sleeve, which can fix the magnet without falling off, and can withstand high-speed rotation and high loads, reducing the probability of motor failure. In addition, it also adds a belt cover to prevent accidental injury from touching the wheels during the operation. The controller is designed with a 6ft long cable to provide you with more operation space and scope.
• HUMANIZED DESIGNSThe needle roller bearing of the controller arm can reduce the wear of the shaft and sleeve, so that it will not produce clearance during long-term use. It has shock absorbers that can reduce motor vibration, reduce wear, and extend the lifespan of itself and the frame. The radiating blade on the motor can quickly dissipate heat, protecting the machine and your safety.
• HIGH CONCENTRICITY & LOW NOISEThe front cover and body of the motor are integrally cast with high concentricity, so the operating sound is smaller. It can work continuously for more than 72 hours. Besides, its speed limit controller can be connected to LED lights (not included) and has five brightness adjustable options, allowing it to adapt to different working requirements.
• WIDE APPLICATIONThis electric servo motor is suitable for any type of industrial sewing machine for light to heavy-duty work including straight stitch machines, overlock sewing machines, zigzag closing machines, blind-stitch machines, heavy-duty walking foot, and heavy-duty upholstery machines.

Description:
This pure copper motor uses high-quality copper wire (99.5% purity), good at thermal conductance and conductivity, making its work more stable.
With a 600W high-power, it has faster sewing speed, higher sewing efficiency, and better quality.
It is equipped with an independent stepless speed lever (500-4500 rpm) with a fast sewing speed of 100 stitches/min.
This pure copper brushless motor can respond faster to changing workloads and speed requirements, with a 30% increase in work efficiency.
Its thoughtful design greatly improves the stability and safety of the motor, while reducing noise pollution, making the sewing environment more comfortable.
It is suitable for any type of industrial sewing machine for light to heavy-duty work including straight stitch machines, overlock sewing machines, zigzag closing machines, blind-stitch machines, heavy-duty walking foot, and heavy-duty upholstery machines.
Whether it's home sewing or professional tailoring, this brushless servo motor can bring the ultimate sewing experience to you.

Specifications:
Color: Silver, White
Material: Aluminum, Plastic, Copper, Magnet Steel
Motor Type: Pure Copper Brushless Motor (99.5% Purity)
Plug Type: US Standard
Voltage: 110V, 50/60HZ
Power: 600W
Torque: 1.5-5 Nm
Speed: 500-4500 RPM
Sewing Speed: 100 Stitches/min
Pole-pair Number: 6
Continuous Working Hours: 72h
Cable Length: 6ft
Foot Pedal Size: 3'' x 3'' x 1.5''
Base Thickness: 0.44''
Controller Size: 7.5'' x 2.5'' x 6''
Motor Size: 10'' x 5'' x 6''
Package Size: 12'' x 11'' x 8''
Product Weight: 8 lbs
Shipping Weight: 9 lbs

Package Includes:
1 x Electric Brushless Servo Motor
1 x Speed Limit Controller
1 x Pull Rod
3 x Shock Absorbers
1 x English Manual
Other Accessories for Installation
