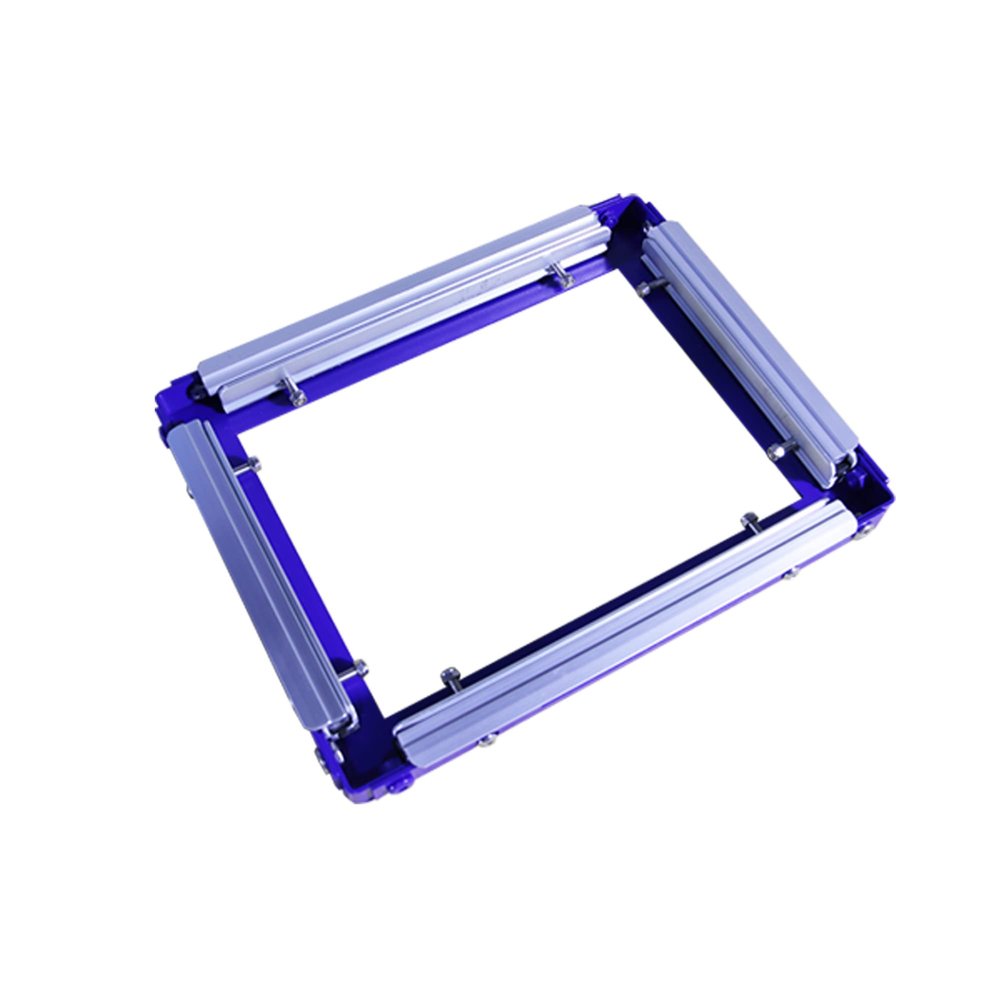

HQHAOTWU Silk Screen Printing Self-Tension Frame Stretch Screen Frame Mesh Glue Free Stretch Screen Tool 12x16 inch

Description

• SizeThe outer size of Screen Printing Frame is 1519 inch. The inner size of the frame is 1216 inch. The pattern size should be within 10.23*14.17 inch.he screen mesh size should be larger than 15x19 inch.PLEASE PAY ATTENTION TO THE APPLICABLE SIZE OF THE SCREEN FRAME BEFORE PURCHASING
• High Quality MaterialSilk Screen Printing Frame is made of high-quality steel plate and aluminum profile,Advanced electrostatic spraying treatment of steel plate surface corrosion-resistant, scrub resistant, rust free and deformation free.
• ReusableThe mesh can be disassembled and used repeatedly. After printing, rinse the screen plate clean,remove the mesh from the screen plate and save it. When the pattern needs to be used again,the screen plate can be installed on the screen frame again for use.
• EASY TO USESelf-tensioning frame do not need stretcher , and also do not need to brush the mesh glue , it can directly stretch the mesh on this frame, tension up to 20N, stretched frame can be coated photosensitive glue as the same as the traditional frame , exposed and printed .
• High Efficience and Environmental FriendlyNo need coating adhesive ,the screen frame is clean,environment;No need stretcher;The tension mesh time is short. Ordinary stretch a frame need at least 1 hour, and this frame only need 5 minutes .it is only one tenth of the traditional stretch time.

Item included:
1 pc 12x16 inch Screen Printing Stretched Screen Frame Glue Free Self-tension Frame Product Color: BLUE Machine material :Steel PlatelAluminum profile Metal Surface Treatment Materials:Electrostatic Spraying Accessory materials:Stainless Steel Install the mesh
1,Loosen the four screws and align the inner edge of the aluminum pressure slot with the inner edge of the frame.
2,Use aluminum alloy pressure mesh bar to wire mesh buckle into one side of the aluminum tank, straighten the mesh as far as possible, in the opposite side , wire mesh buckle into the aluminum tank; Then buckle mesh into the other two sides.
3 First use the hand electric drill to alternately turn the four screws. tighten the mesh
4,If the tension is not enough, use the reinforced inner hexagon wrench to continue to tighten the tension.
5,Installation of mesh or plate is completed, mesh can be plate-making, plate can be printed. Special tips: installation of the plate, because the force is not uniform, may cause a slight deformation of the pattern; If you need to correct, you can paste the original film or 1:1 printed copy on the plate, and then align the screen pattern with the original copy by fine-tuning the four-side screw of the screen frame.
6,Before printing, the foamed rubber strip can be inserted between themesh and the frame. the edge can be sealed with tape Take off the mesh
1,Evenly loosen the four side screws of the mesh frame
2,Using the open cover handle to insert the horizontal edge of the aluminum alloy batten. Lift the handle to open the batten easily.
3,Remove the mesh and save
