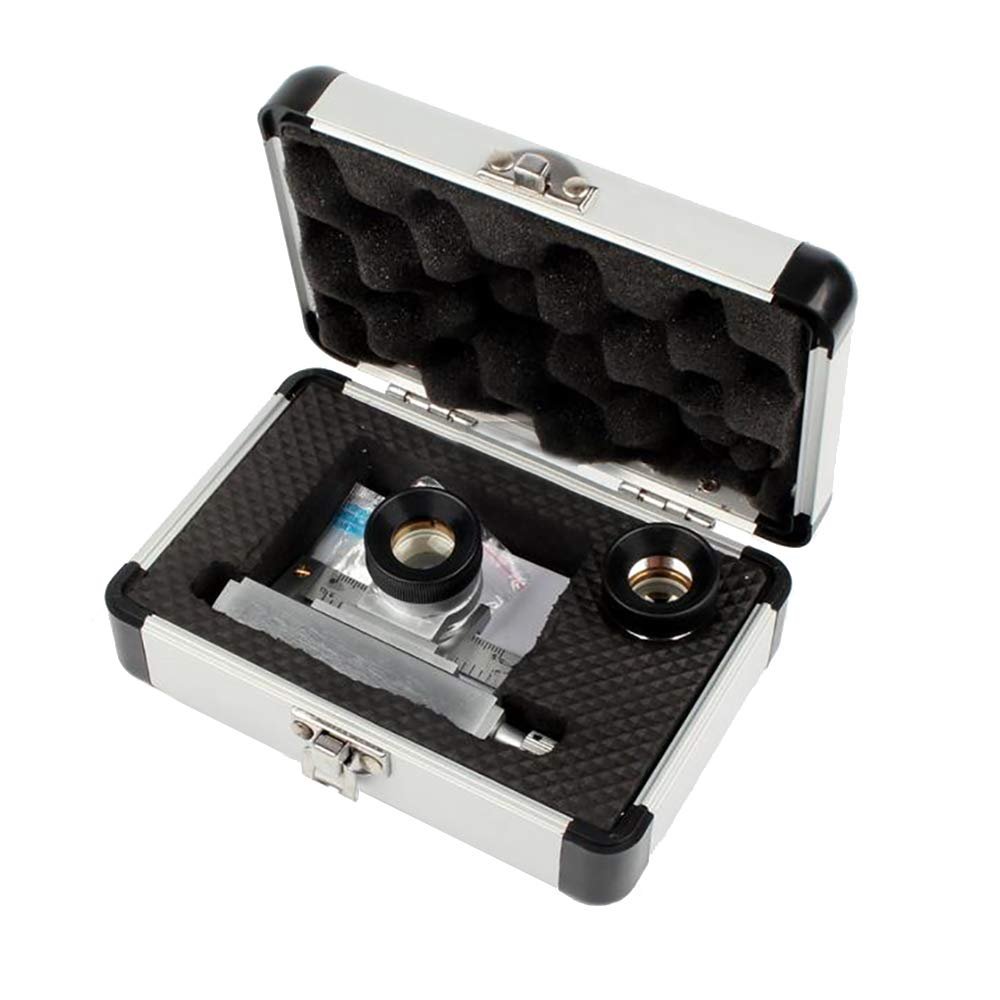

LeTkingok Y511B 10/20 Times Fabric Density Analysis Mirror Double Lens Fabric Cloth Mirror

Description

Y511B 10/20 Times Fabric Density Analysis Mirror Double Lens Fabric Cloth MirrorDescription: The instrument is suitable for textile, knitting and scientific research units to determine the warp, weft and density of various fabrics. Parameter: 1. Magnification of the magnifying glass: 10 times Analysis Mirror: Suitable for fabrics up to 60 20 times Analysis Mirror: Suitable for more than 60 fabrics 2. Lens movement range: Metric 0~5CM Inch 0~2 3. Dimensions: length 100* width 54* height 36 4. Weight: Instrument net weight 260g; total weight (including box) 420g Instructions: 1.According to the predicted number of fabrics, the selected lens magnification instrument mounted on the eyepiece frame 2.According to the color of the fabric, determine the choice of the cursor glass color, choose one of the three colors, easy to check the count. 3.When operating and measuring, place the instrument on the object to be tested. It should be adjusted in parallel with the warp and weft of the fabric to adjust the height of the lens so that the field of view is in a clear state. The left hand grips the top surface of the instrument square, and the right hand rotates the adjustment knob to make the lens The inner score line is aligned with the zero position,The adjustment knob is then reversed to visually measure the number of warp and weft roots per unit length, i.e., fabric density. Include 1*Density analysis mirror 1*Another tenfold lens 2*Cursor glass 1*Metal box
