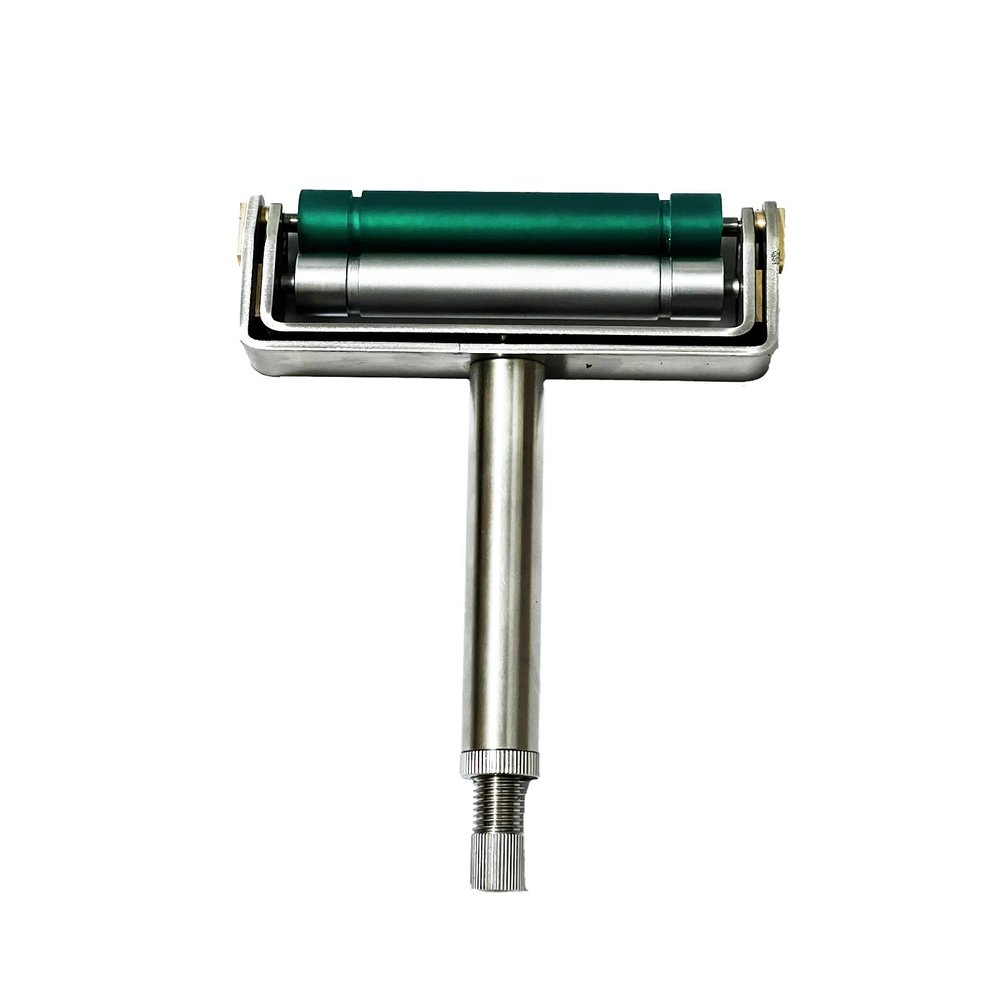

Manual Proofer Manual Color Spreading Wheel Ink Spreader Ink Proofer Chrome Anilox and Rubber Roller Ink Proofer (Direct Push 160 LPI)

Description

• It is a novel and unique structure. It is made of stainless steel material, chrome anilox roller, and solvent resistance rubber roller. It can put water-based ink, gravure ink, aniline ink, and another liquid coating on all kinds of basic materials
• To get the repeatability color sample. It has the function of simulating the printing effect of a printing machine. It is an essential tool for matching colors, improving ink, examining the performance of water-based ink, and examining whether the color is dark or light. It is also necessary for all printing factories to detect special paint.
• Chrome anilox outside dimension: diameter 20 mm, total length 113 mm, chrome roller effective length 100mm. Fixing copper screw nut 4 mm diameter.
• Rubber roller outside dimension: diameter 22 mm, total length 126 mm, rubber roller effective length 100mm. Fixing copper screw nut 4 mm diameter.
• Product classification: threaded type or direct push type. Comparison of the two: the pressure adjustment method is different; the threaded type adjusts the pressure between the rollers by adjusting the tail bolt. The direct push type is to push the snap to complete the pressure adjustment directly. The direct push type can be done in one step, which is relatively more convenient.

Product name Spread color wheel, ink-proofing instrument
Product classification: threaded type or direct push type.
Comparison of the two: the pressure adjustment method is different; the threaded type adjusts the pressure between the rollers by adjusting the tail bolt. The direct push type is to push the snap to complete the pressure adjustment directly. The direct push type can be done in one step, which is relatively more convenient.
Classification Description: Adjustment method (Direct Push or Threaded ) and LPI
Width of printing surface: 2.75 inches / 70 mm
Roller material: metal anilox roller, solvent-resistant rubber roller
Support material: 304# stainless steel
Thread specification: 60, 80, 100, 120, 140, 160, 200, 220, 250, 300 lines/inch = number of mesh
How to choose the number of anilox rollers: for large ink absorption, choose the low anilox line; for small ink absorption, choose the high anilox line.
Product use: flexographic printing, ink color matching and proofing, carton printing, etc.;

The manual spreading wheel (ink-proofing instrument) is specially designed for flexographic ink color matching and proofing. It is widely used in ink production, carton printing, flexographic printing, and other industries. It consists of stainless steel stand, metal anilox roller, and solvent-resistant rubber roller, which can apply water-based ink, gravure ink, ink, or another liquid coating on various substrates to make reproducible color samples.
It is simple to operate and easy to use, with the function of touching the printing effect of the printing machine. It is the necessary tool for color matching and ink adjustment to detect the printing performance and color shades of water-based inks. It is also an essential tool for printing houses to detect spot colors.Hand proofing ink instrument is designed for flexo printing and is widely used in ink producing, carton printing, and flexo printing industries.
1. Good repeatability performance, can display the density of ink.
2. The pressures between two rollers can be adjustable. The chrome anilox roller control the thickness of the ink film.
3. Easy use and cleaning.
4. It Can save more test printing raw material and time.
