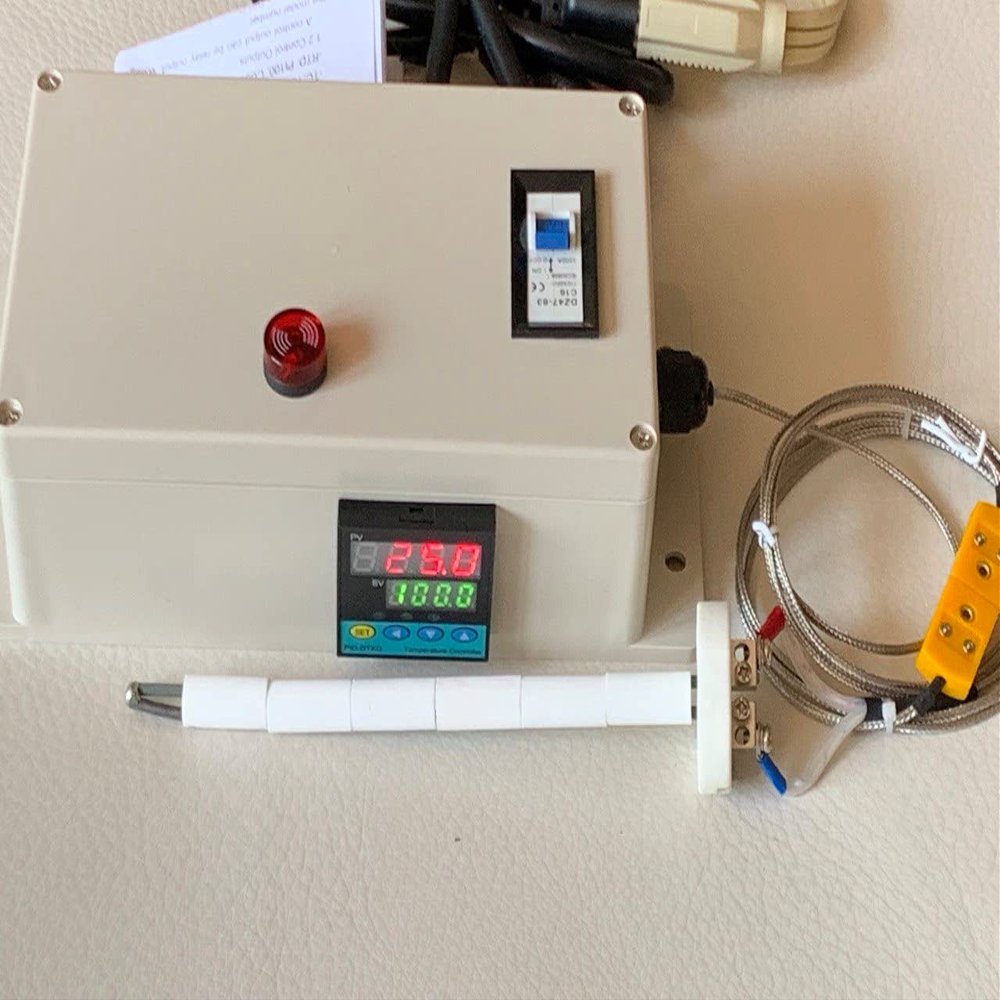

Plug & Play PID Ramp Soak Time Cycle Kiln Oven Temperature Controller 60 Segment Pottery Glass Annealing 120V/20Amp

Description

• Its heavy duty kiln thermocouple can measure very high temperatures up to (1300 C/2372F ).To operate, you only need to plug the heater to the socket wire of the controller at the back, drop the sensor into the Kiln, turn on the power of controller and adjust it to your own requirements.
• 20 Amp Maximum current Heavy duty input and output plug and socket wire Equipped with circuit breaker switch 20Amp/120V (instead of short life fuse) Equipped with 40amp SSR with large Heat sink
• This plug-and-play PID Programmable Ramp and Soak 60 segments (30 Ramp+30 Soak) temperature controller with Ceramic thermocouple, has a wide range of applications in controlling the temperature of Kilns, Ovens, Furnaces, pottery, Glass, Annealing, .. (for loading current up to 20Amp). This is an inexpensive and heavy-duty plug-and-play controller box.
• Equipped with a buzzer and flasher alarm for passing high and low temperatures or thermocouple failure. Fahrenheit and Celsius display. Equipped with male and female connectors, you can easily change your thermocouple. Temperature control range -50 to 1300 C (-58 to 2372 F).

Specifications: Input voltage 120V (for North AMerica) and 240V (for EU and Australia. Output voltage Same as the input with maximum Current load of 20A Controller Mode 30 segments Ramp and soak PID control. Sensor Type Type K 6pc Ceramic Kiln Thermocouple Temperature control range -50 to 1300 C Thermocouple Thread material Cr-Ni, Si-Ni Thermocouple Thread dimensions 3.2mm (diameter ) x 190 mm (long) / (0.13" x 7.5") Sensor cable length 3.3 ft (1m) Ceramic tube shape 6 x (1 inch Pcs, two-hole insulator) Ceramic Tube diameter Oval shape: L=12.3 mm & W=10mm (L~ 0.5 & W~ 0.4) Ceramic tube length ~150 mm (~ 6.0 inch) Box material ABS. Temperature display unit Celsius (C) and Fahrenheit (F). Dimension 200x120x75mm ( 7 3/4 x 4 3/4 x 3" )
