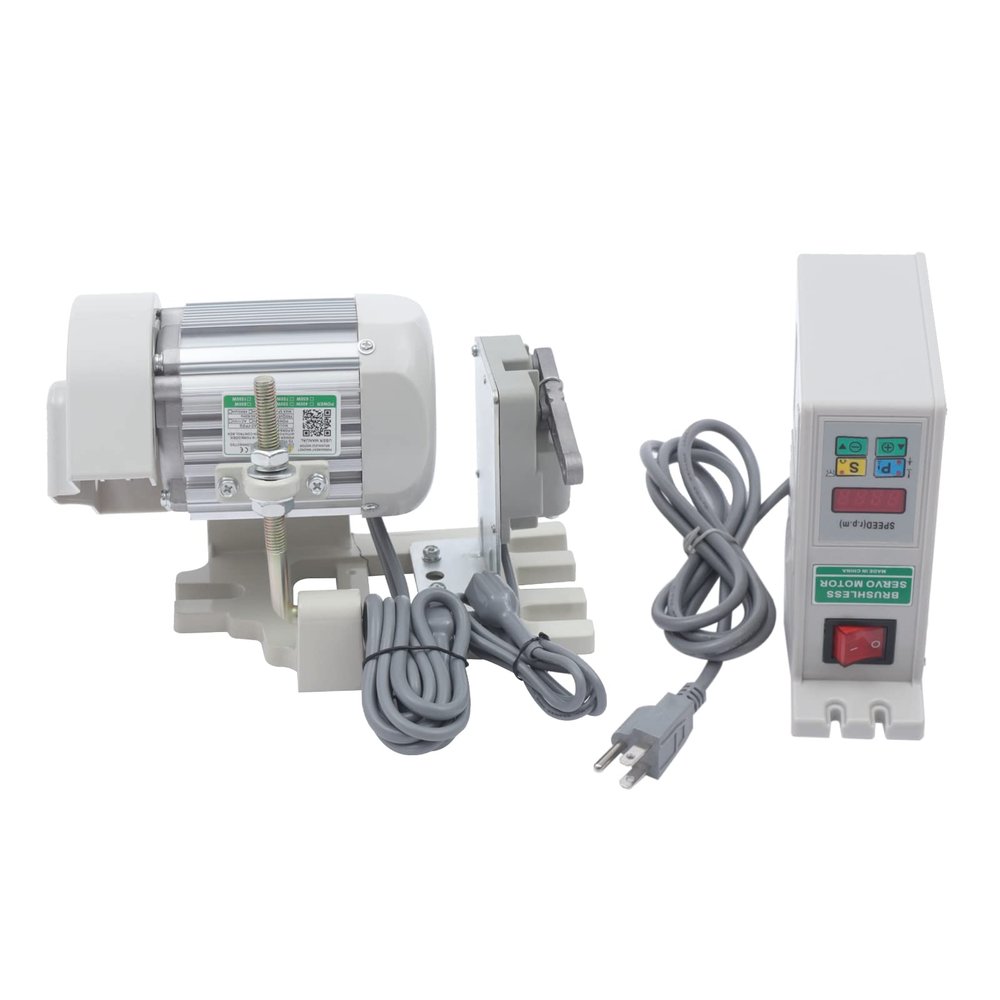

Servo Sewing Machine Motor, 110V 600W Brushless Servo Motor 400-4500RPM Adjustable Speed Electric Brushless Servo Motors for Industrial Sewing Machine 100 Stitches/min

Description

• Pure Copper Coil- The coil of this servo sewing machine motor is made of high-quality high-temperature copper wire with 99.5% copper wire purity. The pure copper coil makes this motor more durable. The motor is equipped with an independent speed control lever, giving you more flexibility in speed adjustment. This servo sewing machine motor is suitable for sewing machines and various machinery.
• Adjustable Speed & Steering Adjustment- The servo sewing machine motor is designed with an independent speed regulator. The pull rod of the governor is capable of infinitely adjustable speed, which is convenient and fast. This servo sewing machine motor is forward and reverses adjustable, so you can effortlessly switch the rotation gear to suit different work requirements.
• Wide Speed Regulation- The electric brushless servo motor kit has a speed regulation range of 400-4500rpm. The wide range of speed adjustments enables this motor to adapt to different work requirements.
• Application- This servo sewing machine motor is suitable for industrial sewing equipment such as flat sewing machines, synchronous carriages, double-needle machines, herringbone carriages, hemming machines, etc.
• Position-adjustable Spring- The spring of this servo sewing machine motor can be adjusted to multiple positions so that the spring force can be adjusted according to different needs to adapt to different work requirements.

Key Features
Stable Operation: The capacitors, resistors, and various devices on the code plate are made of high-quality raw materials and fine processing, which makes this motor run more stable and strong.
Quiet Operation: The servo sewing machine motor has a simple structure and excellent sealing, so the operation sound is low . Such silent operation can improve your working environment.
Easy Maintenance: This servo sewing machine motor is equipped with a high-quality magnet steel sleeve. The magnet sleeve can strengthen the magnet action to reduce demagnetization. The magnet bushing significantly reduces the probability of motor failure.
Needle Bearing Shaft: This servo sewing machine motor is equipped with a needle bearing shaft. Only the needle roller and the sleeve are in motion so that the shaft and sleeve do not wear out. This will not create a gap even after a long time of use, which can extend the life of the motor.
Thickened Base: The servo sewing machine motor's base is thickened, its strong and durable advantages can better support the motor.
Two-way Fixed: The servo sewing machine motor is fixed with four screws in both directions, making it more stable.

Specification
Model: SZ-008
Number of Poles: 6
Material: Plastic, Aluminum, Copper, Magnet steel
Power: 600W
Adjustable Speed: 400-4500rpm
Rated Voltage: 110V
Motor Size: 20.5*10.5*20cm/8.07*4.13*7.87in
Controller Size: 16*6*19cm/6.3*2.36*7.48in
Package Size: 31.5*28*21cm/12.40*11.02*8.26in
Gross Weight: 5kg/11.02lbs
Output shaft: length 45MM, 15mm

Package Included
1*Servo Sewing Machine Motor
1*Controller
1*Pull Rod
3*Shock Absorbing Pads
2*Switch Fixing Screws
3*Motor Fixing Screws
3*Wire Buckles
3*Flat Pads
3*Spring Pads
3*Nuts
